WH3012P 30mm 45mm Stereo Dual Sliding Potentiometer B10K Travel Sliding Potentiometer

Brand Name : Uchi

Model Number : WH3012P

Certification : SMC

Place of Origin : Dongguan，Guangdong,China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T，paypal， Western Union,MoneyGram

Supply Ability : 50000000pcs per Month

Total Resistance : 10K Ω±20%

Resistance Taper : A, B,C,D,E,MN,RD, W,

Max. Operation Voltage : Linear Taper B :AC 200 V~DC / V

Rated Power : Single unit: Linear taper B:0.2W, Other tapers : 0.05W Dual unit: Linear taper B:0.1W, Other tapers :0.025W

Sliding Noise : Less than 100 mV

Insulation Resistance : More than 100 MΩ at DC 250 V

Withstand Voltage : 1 minute at AC 300 V

Residual Resistance : Term. 1~2 :Less than 10 Ω

Gang Error (Dual Unit) : -40 dB ~ 0 dB ± 3dB

Contact Now

WH3012P 30mm 45mm Stereo Dual Sliding Potentiometer B10K Travel Sliding Potentiometer

Slide Potentiometer is a sliding resistor that is formed by a resistance wire around the insulation material. It consists of a sliding film and a contact point that can be used to regulate the resistance of the circuit. The sliding tablet is located on the resistance wire, which can slide along the resistance wire to change the resistance value. Sliding resistors are usually used to regulate the resistance value of amplifier, filter and other electronic devices.

Total length of potentiometer: 75MM/7.5 cm
Potentiometer width: 9mm/0.9cm
Potentiometer thickness: 6.5MM/0.65cm
Push pull handle height: 15mm/1.5cm, handle width: 4mm//0.4cm
Potentiometer stroke: 60MM/6cm
Potentiometer pin position: 4-2 pins
Potentiometer resistance: A10K,
Potentiometer channel: dual channel

Product Features

The advantages of Slide Potentiometer include:

Easy to adjust: The sliding resistor can adjust the resistance value of the circuit by moving the slide tablet, so it is very convenient to use.

High accuracy: The resistance value of the sliding resistor is very accurate, so it can be used in a high -precision circuit.

Wide application range: sliding resistors can be used in various electronic devices and circuits, including amplifiers, filters, oscillators, etc.

Simple structure: The sliding resistor consists of a resistor wire and a sliding tablet. The structure is very simple and easy to make and maintain.

The range of adjustment is wide: the range of the resistance of the sliding resistor is very wide, and it can range from several ohms to thousands of ohms, so it can meet different needs.

Specification Parameters

ELECTRICAL CHARACTERISTICS

Total Resistance

10K Ω±20%

Resistance Taper

A, B,C,D,E,MN,RD, W,

Max. Operation Voltage

Linear Taper B :AC 200 V~DC / V


Other Tapers :AC 150 V~DC / V

Rated Power

Single unit: Linear taper B:0.2W, Other tapers : 0.05W

Dual unit: Linear taper B:0.1W, Other tapers :0.025W

Sliding Noise

Less than 100 mV

Insulation Resistance

More than 100 MΩ at DC 250 V

Withstand Voltage

1 minute at AC 300 V

Residual Resistance

Term. 1~2 :Less than 10 Ω


Term. 2~3 :Less than 10 Ω

Gang Error (Dual Unit)

-40 dB ~ 0 dB ± 3dB

MECHANICAL CHARACTERISTICS

Total Sliding Travel

60.0 mm ± 0.5 mm

Operating Force

10 ~ 100 gf

Sliding Stopper Strength

5.0 Kgf.cm Min.

Push-Pull Strength

3.0 Kgf.cm Min . at 5 sec 10 sec

Number of Detents (Click)

1C (Center Detent ),7C,11C,21C,41C

Click Slip-Out Force

/ ~ / gf

Resistance to soldering heat

Solder dip:

Preheating condition: Surface temperature of the substrate shall be settled within 100℃ in one min.

Solder temperature 260±5℃for 5 sec.

Manual Soldering: Less than 300℃ and quicker than 3 seconds.

Sliding Life

10,000 Other / (Cycles Min.)


Product Size

Application Areas

Straight slide potentiometers are widely used in various fields, including audio equipment, mechanical control, instrumentation, etc.Its simple and practical design and reliability make the linear slide potentiometer one of the commonly used components among electronic engineers and manufacturers.

Manufacturer Information

We are a specialized factory with extensive experience in high-quality electronic component manufacturing:

  • Advanced production equipment
  • Professional R&D team
  • OEM/ODM capabilities
  • Strict quality control standards
WH3012P 30mm 45mm Stereo Dual Sliding Potentiometer B10K Travel Sliding Potentiometer
Shipping & Support

We offer reliable global shipping solutions with comprehensive after-sales support:

  • Express Mail Service
  • DHL Express
  • UPS
  • FedEx
WH3012P 30mm 45mm Stereo Dual Sliding Potentiometer B10K Travel Sliding Potentiometer
Frequently Asked Questions
Are you a factory or trading company?

We are a factory offering direct pricing with professional technical support.

Could you provide samples?

Samples are available upon request after order placement.

Can your product be customized?

We accept OEM/ODM orders with flexible requirements.

What is your delivery time?

Delivery varies by quantity and model, with urgent requests accommodated when possible.

Do you offer after-sales service?

We provide comprehensive 24-hour support for all products.


Product Tags:

30mm stereo sliding potentiometer B10K



45mm dual sliding potentiometer with warranty



travel sliding potentiometer for precision control


Cheap WH3012P 30mm 45mm Stereo Dual Sliding Potentiometer B10K Travel Sliding Potentiometer for sale

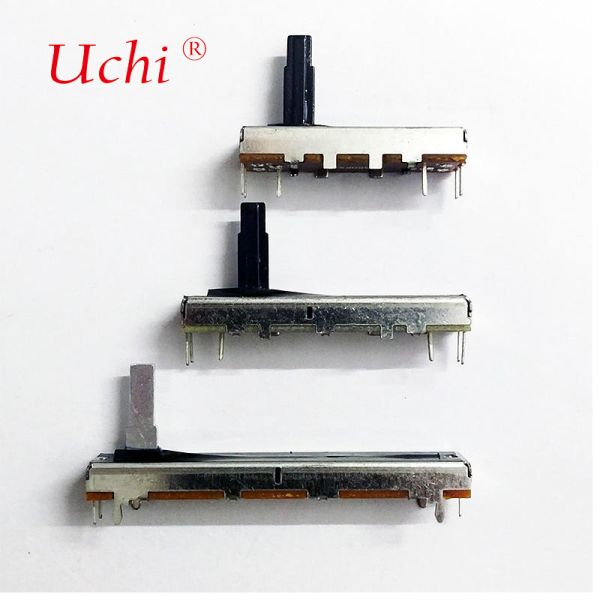

WH3012P 30mm 45mm Stereo Dual Sliding Potentiometer B10K Travel Sliding Potentiometer Images
