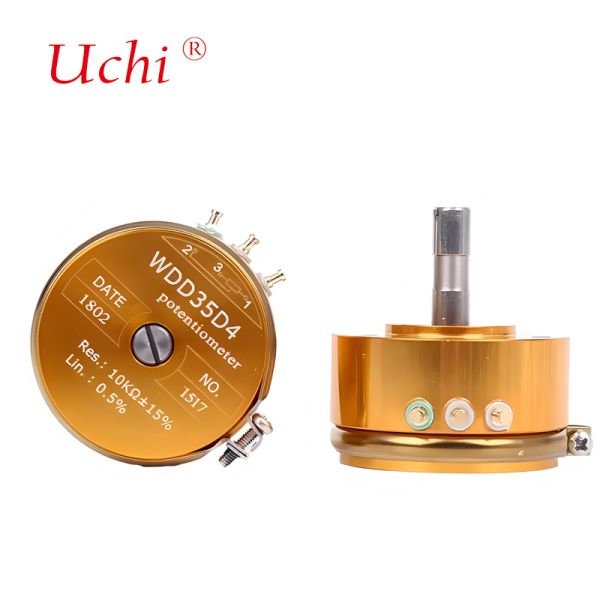

WDD35D4 Rotary Potentiometer Precision Conductive Plastic Potentiometer
The WDD35 series products are made of hard aluminum alloy material as the outer shell, conductive plastic as the resistance material, and undergo molding and laser trimming for fine adjustment. The precious metal brush surge device, stainless steel high-speed bearings and other components ensure the high quality and performance of the products, with excellent performance such as long mechanical life, high resolution, smooth rotation, and low dynamic noise.
Product Features
The product adopts a hard anti-rust aluminum shell, a molded integrated conductive plastic matrix, and a stainless steel shaft matching high-speed bearing for precious metal brushes and current collector parts, which ensures that the product has excellent performance such as high linear accuracy, long mechanical life, high resolution and low dynamic noise
Specification Parameters
| item | value |
| Model Number | WDD35D4 |
| Type | Precision Potentiometer |
| Place of Origin | China |
| Brand Name | shixin |
| Technology | conductive plastic |
| Resistance | 1k 2k 5k 10k |
| Resistance Tolerance | ±15% |
| Rated Power | 2W |
| Max. Operating Voltage | 500V |
| Operating Temperature | -55℃~+125℃ |
| Brand | Angle sensor |
| Power (Watts) | 2W |
| Tolerance | ±15% |
| Adjustment Type | Top |
| Diameter | 36mm |
| Package / Case | metal |
| Rotation | 360° continuous |
| Resistive Material | Conductive Plastic |
| Termination Style | PC Pin |
| Actuator Type | Knob |
| Actuator Diameter | 0.248" (6.30mm) |
| Shaft Size | 0.236" (6.00mm) |
| Number of Turns | 1 |
Product Size
WDD35D4 is suitable for network communication equipment, instrument equipment, industrial machinery equipment, medical equipment, injection molding machines, crane torque control, valves, pedal testing, robotic arms, pan tilt control, papermaking machinery, textile machinery
